序號NO.
|
零件名稱
|
材質
|
|
1
|
閥體
|
不銹鋼CF8/CF8M
|
|
2
|
閥瓣
|
不銹鋼SS304/316
|
|
3
|
閥桿
|
不銹鋼SS316
|
|
4
|
閥蓋
|
不銹鋼CF8/CF8MM
|
|
5
|
密封墊
|
聚四氟乙烯PTFE
|
|
6
|
平墊
|
不銹鋼SS304/316
|
|
7
|
填料
|
聚四氟乙烯PTFE
|
|
8
|
壓環
|
不銹鋼SS304/316
|
|
9
|
壓蓋
|
不銹鋼CF8/CF8M
|
|
10
|
手輪
|
ALUMINUMALLOY
|
|
11
|
鉻牌
|
ALUMINUMALLOY
|
|
12
|
螺母
|
不銹鋼304
|

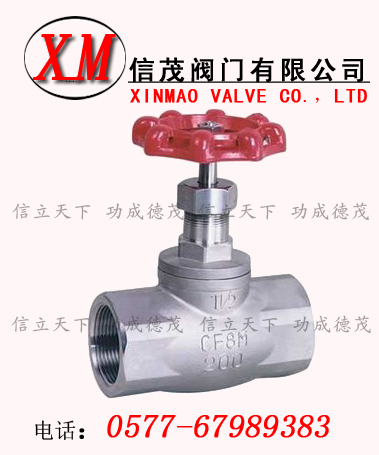

絲扣截止閥-J11W絲扣截止閥主要連接尺寸及重量單位；mm
|
SIZE
|
1/4"
|
3/8"
|
1/2"
|
3/4"
|
1"
|
1 1 / 4 "
|
1 1 / 2 "
|
2"
|
|
A
|
10
|
12
|
15
|
20
|
25
|
32
|
40
|
50
|
|
D
|
70
|
70
|
70
|
70
|
80
|
90
|
90
|
100
|
|
L
|
65
|
65
|
65
|
80
|
90
|
105
|
120
|
140
|
|
H
|
85
|
85
|
85
|
95
|
105
|
125
|
135
|
155
|
|
WT(g)
|
340
|
340
|
350
|
550
|
870
|
1360
|
1860
|
2670
|
