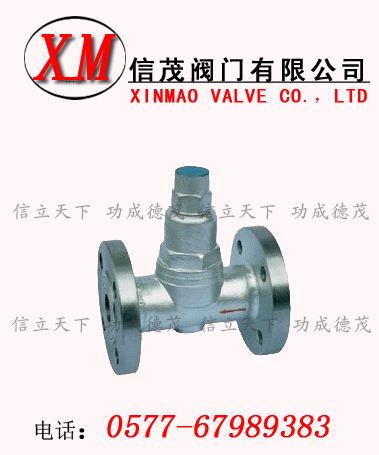

可調雙金屬片疏水閥-CS47H/CS17H/CS67H可調雙金屬片疏水閥結構獨特、性能優良、排水量大、漏汽溫度可調節，過冷度在2℃左右，可能排除大量冷空氣和其它不凝汽體，不會產生汽堵現象�？筛鼡Q內件，易于維修和調整。
可調雙金屬片疏水閥-CS47H/CS17H/CS67H可調雙金屬片疏水閥主要性能規范
|
型號Type/項目Item
|
CS17H-16C
CS47H-16C
CS67H-16C
|
CS17H-25
CS47H-25
CS67H-25
|
CS17H-40
CS47H-40
CS67H-40
|
單位
Unit
|
|
公稱壓力
Nominal Pressure
|
1.6
|
2.5
|
4.0
|
Mpa
|
|
殼體試驗壓力
Shell Test Pressure
|
2.4
|
3.8
|
6.0
|
|
最高工作壓力
Max
|
1.6
|
2.5
|
4.0
|
|
最高工作溫度Max
Works Temperature
|
203
|
220
|
247
|
℃
|
|
最高允許溫度Max
Vouchsafement Temperature
|
425
|
425
|
425
|
|
工作介質
Working Medium
|
蒸汽、凝結水Stemam
|
可調雙金屬片疏水閥-CS47H/CS17H/CS67H可調雙金屬片疏水閥主要零件材料
|
型號Type/項目Item
|
CS 17 H、CS47H、CS 67 H 16 C、25C、40 C
|
|
閥體Body
|
碳鋼Carbon Steel
|
|
閥蓋Donner
|
|
閥芯
|
不銹鋼Atainless Steel
|
|
閥座Seat
|
不銹鋼Atainless Steel
|
|
熱敏元件
|
熱雙金屬片
|
|
過濾器Percolator
|
不銹鋼Atainless Steel
|
可調雙金屬片疏水閥-CS47H/CS17H/CS67H可調雙金屬片疏水閥主要外型及連接尺寸
|
型號
Type
|
DN
|
螺紋連接
|
承接焊連接
|
法蘭連接
|
|
RC
|
L
|
H
|
W
|
L
|
H
|
W
|
d’
|
T
|
L
|
H
|
D
|
K
|
d
|
C
|
F
|
N-φ
|
|
(mm)
|
(mm)
|
(mm)
|
|
CS17H-16C
CS47H-16C
CS67H-16C
|
15
|
1/2
|
100
|
92
|
82
|
100
|
92
|
82
|
22
|
12
|
150
|
92
|
95
|
65
|
45
|
14
|
2
|
4-14
|
|
20
|
3/4
|
100
|
92
|
82
|
100
|
92
|
82
|
27
|
12
|
150
|
92
|
105
|
75
|
55
|
14
|
2
|
4-14
|
|
25
|
1
|
100
|
92
|
82
|
100
|
92
|
82
|
34
|
12
|
160
|
92
|
115
|
85
|
65
|
14
|
2
|
4-14
|
|
32
|
11/4
|
165
|
140
|
115
|
165
|
140
|
115
|
42
|
13
|
200
|
140
|
135
|
100
|
78
|
16
|
2
|
4-18
|
|
40
|
11/2
|
165
|
140
|
115
|
165
|
140
|
115
|
48
|
13
|
200
|
140
|
145
|
110
|
85
|
16
|
3
|
4-18
|
|
50
|
2
|
175
|
140
|
115
|
175
|
140
|
115
|
61
|
14
|
230
|
140
|
160
|
125
|
100
|
16
|
3
|
4-18
|
|
CS17H-25
CS47H-25
CS67H-25
|
15
|
1/2
|
100
|
92
|
82
|
100
|
92
|
82
|
22
|
12
|
150
|
92
|
95
|
65
|
45
|
14
|
2
|
4-14
|
|
20
|
3/4
|
100
|
92
|
82
|
100
|
92
|
82
|
27
|
12
|
150
|
92
|
105
|
75
|
55
|
14
|
2
|
4-14
|
|
25
|
1
|
100
|
92
|
82
|
100
|
92
|
82
|
34
|
12
|
160
|
92
|
115
|
85
|
65
|
14
|
2
|
4-14
|
|
32
|
11/4
|
165
|
140
|
115
|
165
|
140
|
115
|
42
|
13
|
200
|
140
|
135
|
100
|
78
|
16
|
2
|
4-18
|
|
40
|
11/2
|
165
|
140
|
115
|
165
|
140
|
115
|
48
|
13
|
230
|
140
|
145
|
110
|
85
|
16
|
3
|
4-18
|
|
50
|
2
|
175
|
140
|
115
|
175
|
140
|
115
|
61
|
14
|
230
|
140
|
160
|
125
|
100
|
16
|
3
|
4-18
|
|
CS17H-40
CS47H-40
CS67H-40
|
15
|
1/2
|
100
|
92
|
82
|
100
|
92
|
82
|
22
|
12
|
250
|
92
|
95
|
65
|
45
|
14
|
2
|
4-14
|
|
20
|
3/4
|
100
|
92
|
82
|
100
|
92
|
82
|
27
|
12
|
150
|
92
|
105
|
75
|
55
|
14
|
2
|
4-14
|
|
25
|
1
|
100
|
92
|
82
|
100
|
92
|
82
|
34
|
12
|
160
|
92
|
115
|
85
|
65
|
14
|
2
|
4-14
|
|
32
|
11/4
|
165
|
140
|
115
|
165
|
140
|
115
|
42
|
13
|
200
|
140
|
135
|
100
|
78
|
16
|
2
|
4-18
|
|
40
|
11/2
|
165
|
140
|
115
|
165
|
140
|
115
|
48
|
13
|
200
|
140
|
145
|
110
|
85
|
16
|
3
|
4-18
|
|
50
|
2
|
175
|
140
|
115
|
175
|
140
|
115
|
61
|
14
|
230
|
140
|
160
|
125
|
100
|
16
|
3
|
4-18
|
